Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated 1
Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated 2
Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated 3
Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated 4
Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated 5
Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated 6

Type-C USB 5V 2A Boost Converter Step-Up Power Module Lithium Battery Charging Protection Board charge-discharge integrated

$2.99

- +
Store
This That Those and These
0 out of 5
SKU: K9NJAS47LMJ2 Category:
Item will be shipped in 1-3 business days
  Ask a Question

Description

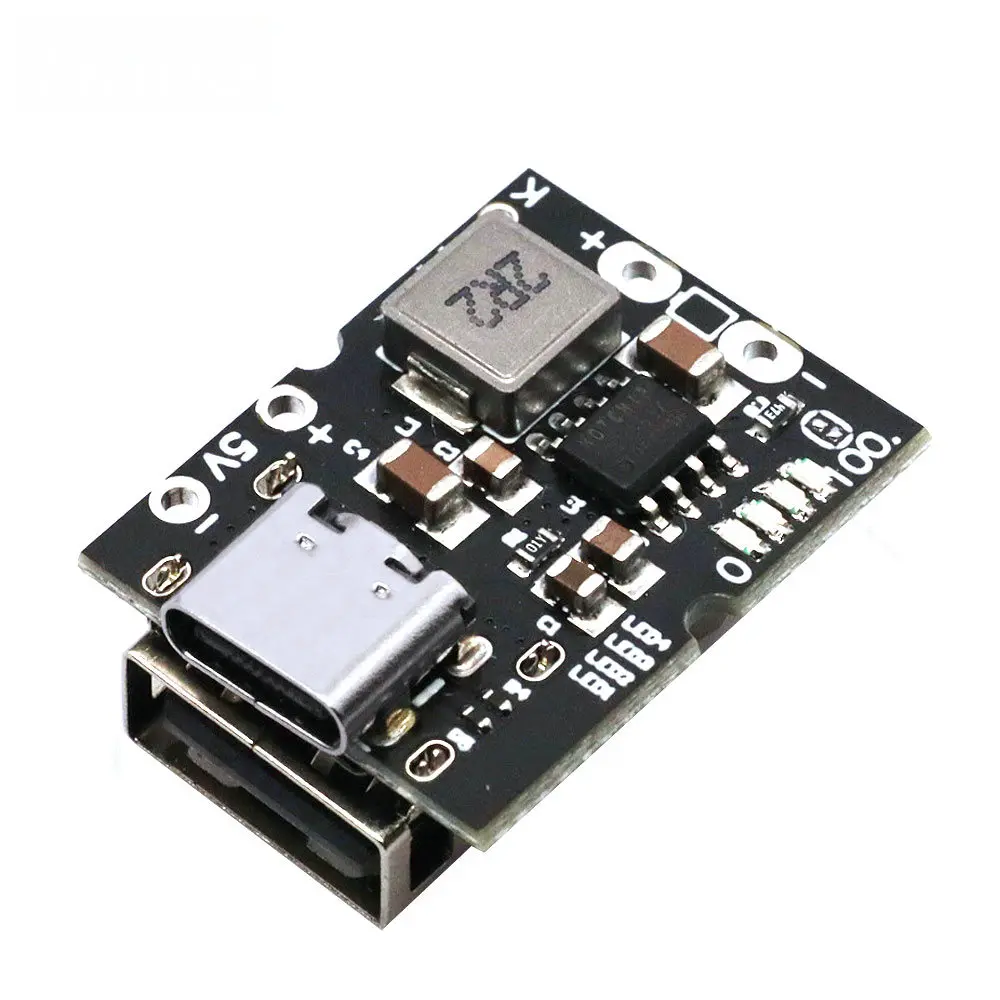

TYPE-C USB Black Board



Specification:

Input voltage range: 5 ~ 5.5V

Charging cut-off voltage: (4.2v/4.35v) ± 0.5%

Charging current: 2.4a ± 5%

Boost output voltage: 5V ~ 5.15v (line loss compensation)

Boost output voltage ripple: 100mV

Boost output current: 2A

Boost conversion efficiency: 92.5% (3.6V input, 5v2a output)

Static current at battery end: < 30uA



Function introduction

When the load current is less than 50mA continuously, the output will be turned off.

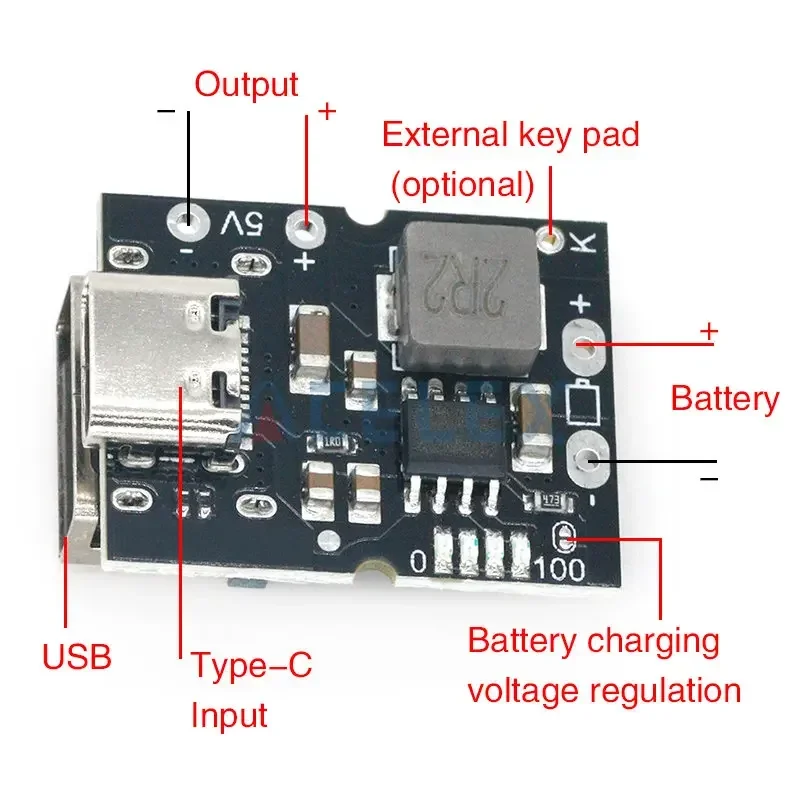

It supports the external key, which is connected to the K point and the output negative pole. Short press to turn on the power display and turn on the 5V output. Two consecutive short presses will turn off the power display and turn off the 5V output.

When the charging current drops to 100mA after reaching the final floating charging voltage, the charging cycle will be automatically terminated.

When the battery voltage drops below 4.1V, the charging cycle starts again.

When the battery voltage is lower than 2.8V, the battery will be pre charged with a current of 180mA.

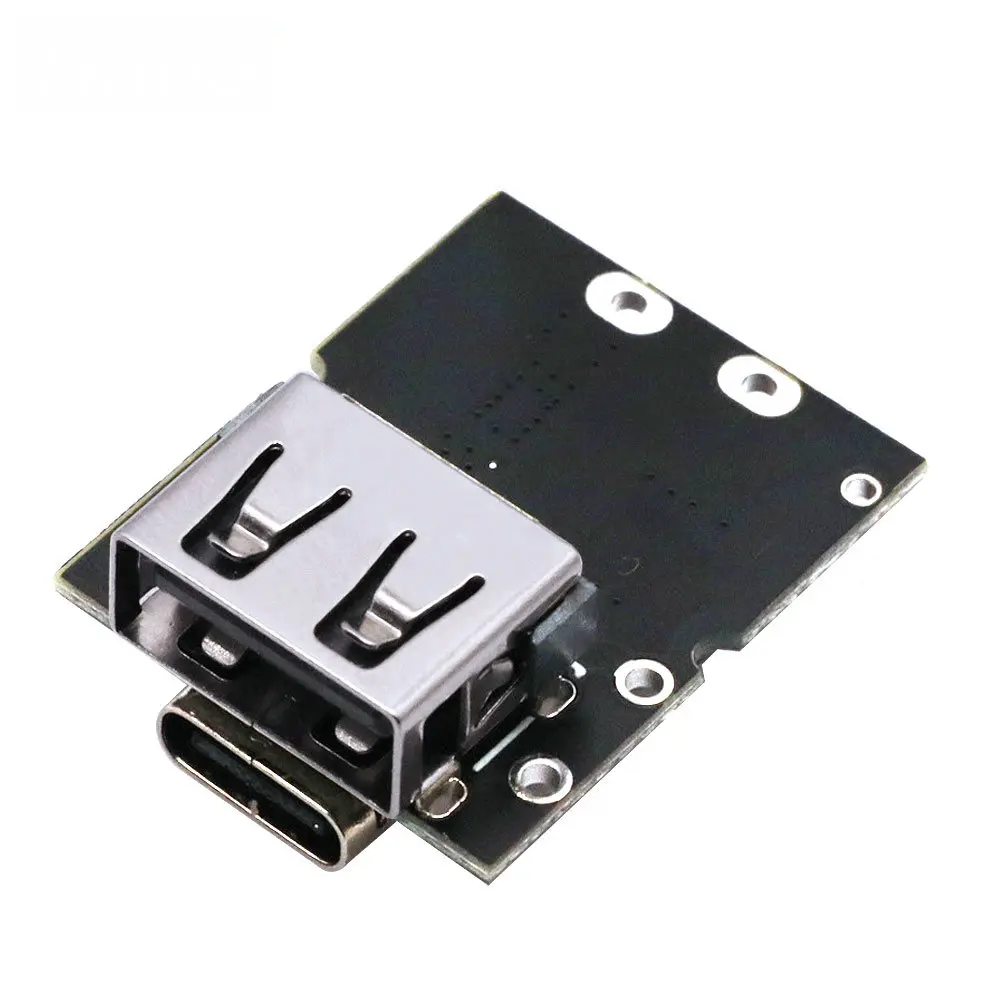

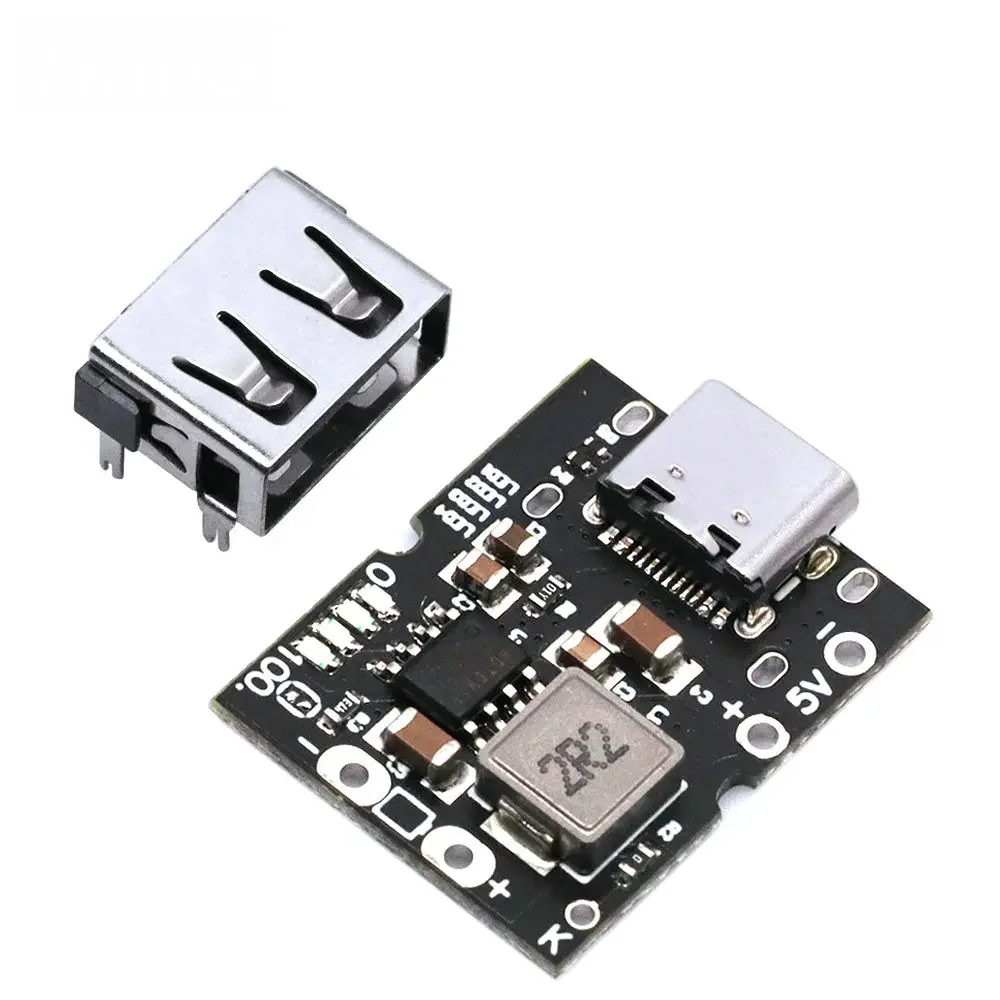

The usb-a base weldingposition is provided on the back of the product, which can be installed manually.

It supports discharging while charging.

Weight 0.015 lbs
Dimensions 1 × 1 × 1 in
Brand Name

NONE
Origin

Mainland China
High-concerned chemical

None
Condition

New
Type

Module
Model Number

Step-Up Power Module
Supply Voltage

5V
Dissipation Power

5V
is_customized

Yes
Operating Temperature

..
Application

Computer
Package

SMD
